PTR Rectangular
Sección rectangular, óptimo para marcos de ventanas y estructuras de soporte.
| Descripción | Dimensiones | Calibre | Espesor | Largo (m) | Kg/m |
|---|---|---|---|---|---|
| R100 | 1" x 1/2" | 18 | 0.048” | 6.00 | 0.68 |
| R125 | 1 1/4” x 3/4” | 20 | 0.036” | 6.00 | 0.70 |
| 18 | 0.048” | 6.00 | 0.92 | ||
| R155 | 1 1/2” x 1/2” | 20 | 0.036” | 6.00 | 0.70 |
| 18 | 0.048” | 6.00 | 0.92 | ||
| R151 | 1 1/2” x 1” | 20 | 0.036” | 6.00 | 0.88 |
| 18 | 0.048” | 6.00 | 1.16 | ||
| 16 | 0.060” | 6.00 | 1.44 | ||
| 14 | 0.075” | 6.00 | 1.78 | ||
| 11 | 0.120” | 6.00 | 2.55 | ||
| R175 | 1 3/4” x 3/4” | 20 | 0.036” | 6.00 | 0.88 |
| 18 | 0.048” | 6.00 | 1.16 | ||
| R200 | 2” x 1” | 20 | 0.036” | 6.00 | 1.06 |
| 18 | 0.048” | 6.00 | 1.40 | ||
| 14 | 0.075” | 6.00 | 2.15 | ||
| 11 | 0.120” | 6.00 | 3.15 | ||
| R225 | 2 1/4” x 3/4” | 20 | 0.036” | 6.00 | 1.06 |
| 18 | 0.048” | 6.00 | 1.40 | ||
| R249 | 2 1/2” x 1 1/4” | 20 | 0.036” | 6.00 | 1.34 |
| 18 | 0.048” | 6.00 | 1.77 | ||
| R250 | 2 1/2” x 1 1/2” | 14 | 0.075” | 6.00 | 2.91 |
| R301 | 3” x 1” | 18 | 0.048” | 6.00 | 1.89 |
| 16 | 0.060” | 6.00 | 2.35 | ||
| 14 | 0.075” | 6.00 | 2.91 | ||
| 11 | 0.120” | 6.00 | 4.36 | ||
| 10 | 0.135” | 6.00 | 4.84 | ||
| R300 | 3” x 1 1/2” | 20 | 0.036” | 6.00 | 1.61 |
| 18 | 0.048” | 6.00 | 2.13 | ||
| 14 | 0.075” | 6.00 | 3.29 | ||
| 11 | 0.120” | 6.00 | 4.90 | ||
| R302 | 3” x 2” | 14 | 0.075” | 6.00 | 3.67 |
| 11 | 0.120” | 6.00 | 5.57 | ||
| 10 | 0.135” | 6.00 | 6.20 | ||
| 7 | 0.180” | 6.10 | 8.34 | ||
| 1/4” | 0.250” | 6.10 | 10.57 | ||
| R400 | 4” x 1 1/2” | 14 | 0.075” | 6.00 | 4.04 |
| R402 | 4” x 2” | 14 | 0.075” | 6.00 | 4.42 |
| 11 | 0.120” | 6.00 | 6.78 | ||
| 9 | 0.150” | 6.00 | 8.33 | ||
| 7 | 0.180” | 6.10 | 10.24 | ||
| 1/4” | 0.250” | 6.10 | 13.13 | ||
| R403 | 4” x 3” | 14 | 0.075” | 6.00 | 5.18 |
| 11 | 0.120” | 6.10 | 7.99 | ||
| 9 | 0.150” | 6.10 / 12.20 | 9.85 | ||
| 7 | 0.180” | 6.10 | 12.14 | ||
| 1/4” | 0.250” | 6.10 / 12.20 | 15.63 | ||
| R403 | 4” x 3” | 14 | 0.075” | 6.00 | 5.18 |
| 11 | 0.120” | 6.10 | 7.99 | ||
| 9 | 0.150” | 6.10 / 12.20 | 9.85 | ||
| 7 | 0.180” | 6.10 | 12.14 | ||
| 1/4” | 0.250” | 6.10 / 12.20 | 15.63 | ||
| R502 | 5” x 2” | 11 | 0.120” | 6.10 | 7.99 |
| 7 | 0.180” | 6.10 | 12.14 | ||
| R503 | 5” x 3” | 14 | 0.075” | 6.00 | 5.93 |
| 1/8” | 0.125” | 6.10 / 12.20 | 9.21 | ||
| 3/16” | 0.187” | 6.10 / 12.20 | 14.03 | ||
| 1/4” | 0.250” | 6.10 / 12.20 | 18.16 | ||
| R602 | 6” x 2” | 14 | 0.075” | 6.10 | 5.93 |
| 1/8” | 0.125” | 6.10 / 12.20 | 9.21 | ||
| 3/16” | 0.187” | 6.10 / 12.20 | 14.03 | ||
| 1/4” | 0.250” | 6.10 / 12.20 | 18.16 | ||
| R604 | 6” x 4” | 1/8” | 0.125” | 6.10 / 12.20 | 11.63 |
| 3/16” | 0.187” | 6.10 / 12.20 | 17.85 | ||
| 1/4” | 0.250” | 6.10 / 12.20 | 23.22 | ||
| R803 | 8” x 3” | 1/8” | 0.125” | 12.20 | 13.61 |
| 3/16” | 0.187” | 12.20 | 20.00 |
Algunos de nuestros productos son sobre pedido especial, verifica con el ejecutivo de ventas.
Los pesos en la tabla son teóricos y pueden variar + - un 5%.

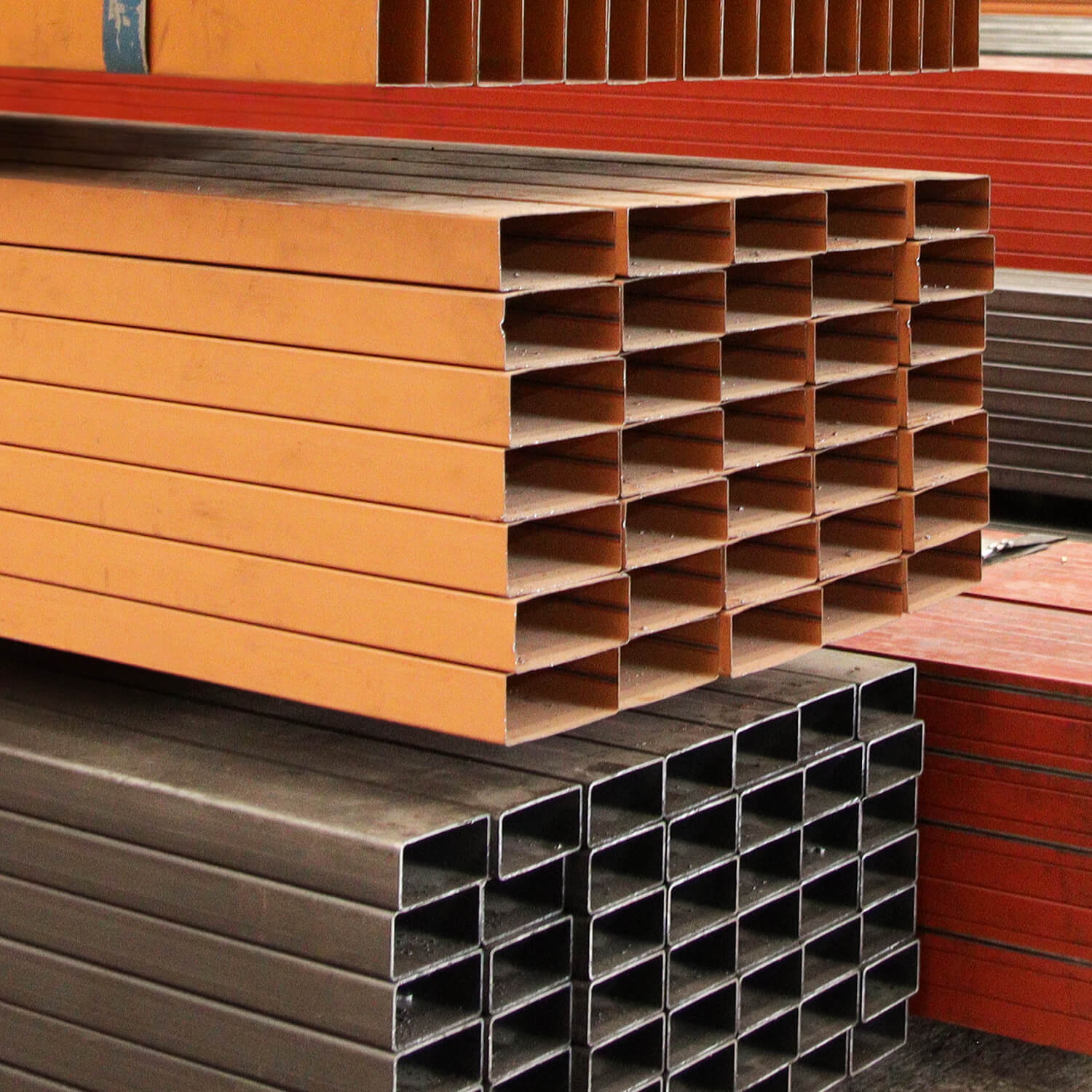

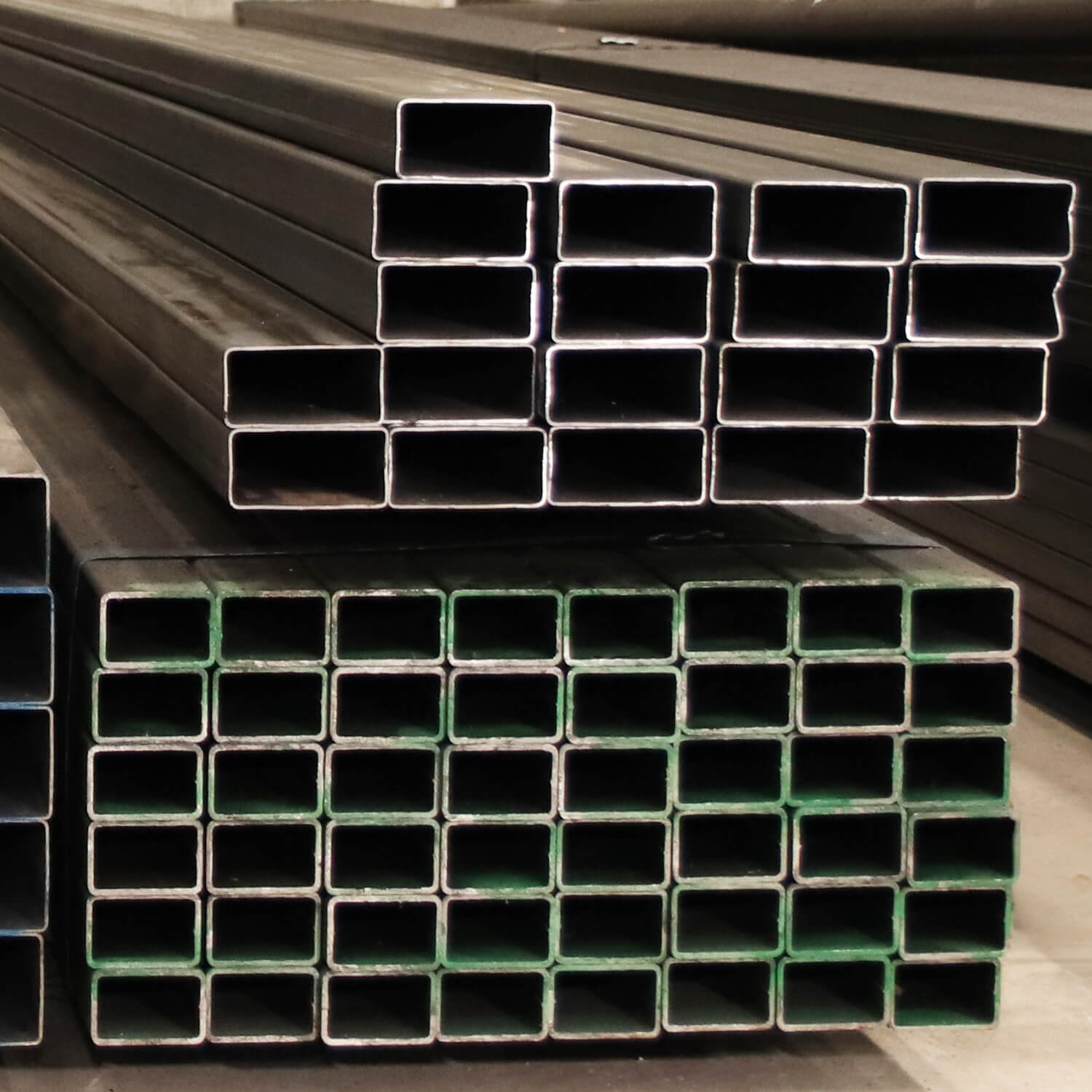

Usos del producto
